2026 Jeep® Grand Wagoneer in Margate, FL
The 2026 Jeep® Grand Wagoneer is a full-size four-door sport-utility vehicle built on a steel-frame platform and offered with rear-wheel drive or four-wheel drive configurations. Classified as a multipurpose vehicle, it combines a twin-turbocharged inline six-cylinder engine, an eight-speed automatic transmission, fully independent suspension systems, and a range of wheel and tire combinations tailored to different trim levels and packages. The model is available in standard and extended-wheelbase configurations and provides three-row seating with substantial passenger and cargo capacity. Available air suspension technology further expands its capability by increasing ride height and improving approach, departure, and breakover angles.
Engine and Powertrain
The 2026 Jeep® Grand Wagoneer employs a standard 3.0-liter Hurricane Twin Turbo engine paired with a TorqueFlite 880RE eight-speed automatic transmission. This powertrain configuration supports either rear-wheel drive or four-wheel drive, depending on the selected model. The front-engine layout and body-on-frame construction provide the foundation for the vehicle's performance and utility characteristics. Modern engine technologies and electronic controls contribute to efficient operation and responsive power delivery. These components work together to create a drivetrain designed for both everyday driving and demanding towing requirements.
3.0-Liter Hurricane Twin Turbo Engine
Power for the 2026 Jeep® Grand Wagoneer comes from a twin-turbocharged 3.0-liter inline six-cylinder gasoline engine with direct fuel injection. Displacement measures 183 cubic inches, and the engine uses dual overhead camshafts with dual independent valve timing. The valvetrain incorporates 24 valves with sodium-filled exhaust valves, roller finger followers, hydraulic lash adjusters, and hydroformed tubular camshafts. Construction includes a deep-skirt cast-aluminum block with cross-bolted steel main bearing caps, low-friction plasma spray-bore-coated cylinders, an aluminum alloy oil pan, and forged steel internal components. Output reaches 420 horsepower at 5,200 rpm and 468 lb.-ft. of torque at 3,500 rpm, while maximum engine speed is electronically limited to 5,800 rpm.
Fuel Delivery and Engine Systems
The fuel system uses centrally located gasoline direct injectors supplied by a single high-pressure pump capable of delivering pressures up to 5,075 psi. A single fuel rail distributes fuel throughout the engine, and the compression ratio is rated at 10.4:1. Jeep® recommends mid-grade 89-octane fuel, although regular 87-octane gasoline remains acceptable. Oil capacity totals 7.5 quarts when replacing the filter, and the factory oil fill specification is Pennzoil Ultra Platinum 0W-20 GF6+ oil. Separate high-temperature and low-temperature cooling circuits support thermal management, while emission controls include cooled exhaust gas recirculation, dual close-coupled two-stage catalytic converters, and quad-heated oxygen sensors.
Eight-Speed Automatic Transmission
Every 2026 Jeep® Grand Wagoneer uses the TorqueFlite 880RE eight-speed automatic transmission with overdrive. The transmission features five clutches and four planetary gearsets, producing an overall ratio spread of 8.6. Start-stop capability and electronic range selection are integrated into the design to enhance functionality and driver control. The electronically modulated torque converter clutch incorporates a torsional turbine damper to support smooth operation. Gear ratios range from a 5.5 first gear to a 0.640 eighth gear, providing a broad operating range for acceleration and highway travel.
Four-Wheel Drive Systems and Axles
The drivetrain architecture of the 2026 Jeep® Grand Wagoneer includes multiple transfer case options and several axle configurations. These components are designed to manage power distribution while supporting towing capability and traction requirements. Depending on the selected equipment, the vehicle can operate with full-time active four-wheel drive and multiple terrain settings. Optional hardware adds low-range gearing and additional operating modes. These systems contribute to the versatility expected from a full-size SUV.
Transfer Case Configurations
A single-speed transfer case is standard with the 3.0-liter Hurricane Twin Turbo engine. This system operates in full-time active four-wheel drive and provides variable torque distribution between the front and rear axles. Available drive modes include Auto, Tow, Snow, Mud, Sand, and Sport. An optional two-speed transfer case adds a low-range ratio of 2.64 and introduces Rock mode for expanded capability. The electronically shifted design also provides Neutral and 4x4 Low Active settings while maintaining full-time active four-wheel-drive operation.
Front and Rear Axles
Four-wheel-drive models use a front axle with an open differential and an 8.5-inch ring gear. Rear axle configurations include a standard limited-slip differential and an available electronic limited-slip differential. The rear ring gear measures 10.2 inches in diameter. Standard axle ratios are 3.55:1, while 3.92:1 gearing remains available as an option. These axle combinations support the vehicle's towing capacity and provide different performance characteristics depending on configuration.
Suspension and Steering Systems
The 2026 Jeep® Grand Wagoneer combines a steel-frame structure with independent suspension systems at both ends. Engineers incorporated lightweight aluminum components and high-strength materials to balance strength with ride quality. Available air suspension technology adds adjustable ride height and semi-active damping capability. Steering characteristics differ slightly between the standard-wheelbase and extended-wheelbase models. Together, these components contribute to predictable handling and stability.
Independent Suspension Design
The front suspension uses a short- and long-arm independent design with a hybrid steel composite upper control arm, aluminum lower control arm, and aluminum knuckle. Coil springs with monotube shocks are standard, while Quadra-Lift air suspension with semi-active damping remains available. Rear suspension uses a five-link independent arrangement featuring forged aluminum links and a high-strength steel spring link. Depending on configuration, the rear suspension uses monotube load-leveling shocks or available Quadra-Lift air suspension. Hollow stabilizer bars and carefully engineered suspension geometry support ride comfort and vehicle control.
Electric Rack-and-Pinion Steering
Electric rack-and-pinion steering comes standard across the lineup. The standard 2026 Jeep® Grand Wagoneer uses a 16.7:1 steering ratio, while the 2026 Jeep® Grand Wagoneer L employs a 16.0:1 ratio. The turning diameter measures 40.2 feet for the standard-wheelbase model and 42.2 feet for the long-wheelbase version. Steering travel requires 3.1 turns lock-to-lock in the standard model and 2.97 turns in the 2026 Jeep® Grand Wagoneer L. These specifications provide maneuverability that complements the vehicle's size and wheelbase dimensions.
Braking and Vehicle Control Systems
The braking system of the 2026 Jeep® Grand Wagoneer combines large disc brakes with several electronic control technologies. Standard equipment includes electronic power brakes and anti-lock braking capability. Additional systems support traction management and stability control. These components are integrated to maintain braking consistency under varying driving conditions. The hardware dimensions provide substantial swept area for effective stopping performance.
Brake Components
Electronic power brakes with eBooster technology are standard on every model. Front brakes use vented discs measuring 14.88 inches in diameter and two-piston pin-slider calipers. Rear brakes employ 14.76-inch solid discs with single-piston pin-slider calipers and an electronic parking brake. Swept areas total 100.9 square inches at the front and 79.2 square inches at the rear. These dimensions provide the foundation for the vehicle's braking capability.
Stability and Traction Technologies
Electronic Stability Control, four-wheel anti-lock brakes, all-speed traction control, and Brake Assist are standard features. These systems operate together to support directional control and traction under varying conditions. The integrated design allows the braking and stability systems to communicate with other vehicle components. Electronic controls contribute to consistent operation during acceleration and braking events. Standardization across the lineup provides the same suite of control technologies regardless of wheelbase configuration.
Dimensions and Ground Clearance
The 2026 Jeep® Grand Wagoneer is available with wheelbases measuring 123 inches and 130 inches. Overall length reaches 216.1 inches for the standard model and 228.1 inches for the 2026 Jeep® Grand Wagoneer L. Body width measures 83.6 inches, while width including mirrors extends to 94 inches. Fuel tank capacity is rated at 26.5 gallons on the standard model and 30.5 gallons on the extended-wheelbase version. These measurements contribute to passenger space, cargo capacity, and towing capability.
Ride Height and Off-Road Geometry
Ground clearance varies according to suspension configuration. Vehicles equipped with standard suspension provide 7.4 inches of ground clearance, while Quadra-Lift air suspension in Off-Road 2 mode increases clearance to 10.1 inches. Chassis clearance and axle clearance measurements also increase when air suspension is selected. Approach angle improves from 21.4 degrees to 25.2 degrees, while departure angle increases from 21.2 degrees to 24 degrees. The ramp breakover angle also rises from 18.6 degrees to 22 degrees when operating in Off-Road 2 mode.
Passenger Accommodations and Cargo Capacity

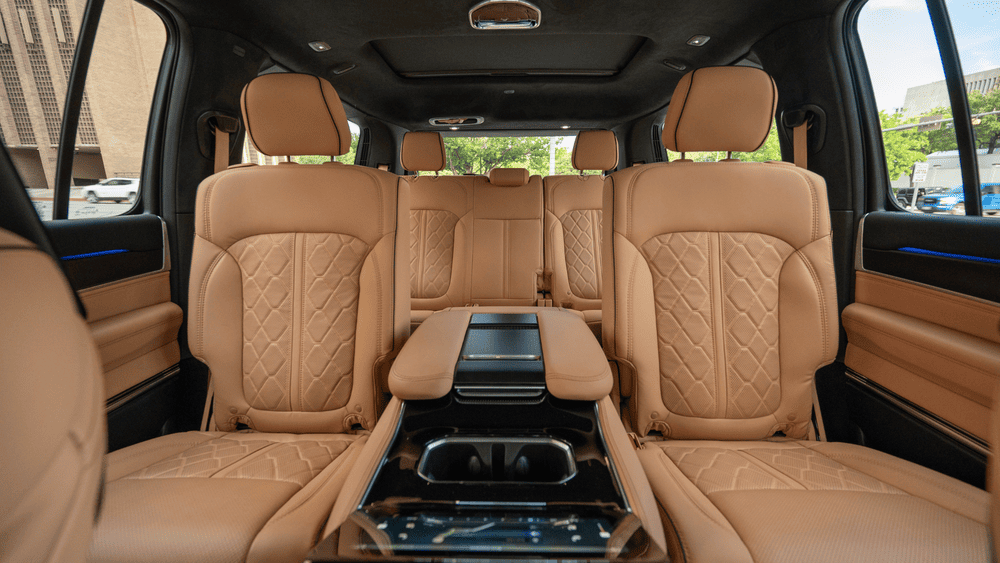

The 2026 Jeep® Grand Wagoneer features a three-row interior with seating arrangements designed to accommodate different needs. Standard configuration consists of captain's chairs in the second row, producing a 2/2/3 seating layout. An available second-row bench seat changes the arrangement to 2/3/3. Total interior passenger volume measures 182.4 cubic feet. Generous dimensions across all seating rows provide substantial room for occupants.
Interior Space Measurements
Front occupants receive 40.9 inches of legroom and 66.1 inches of shoulder room. Second-row passengers benefit from 42.7 inches of legroom and 65.2 inches of shoulder room, while third-row passengers have 36.6 inches of legroom and 64.4 inches of shoulder room. Cargo volume measures 27.9 cubic feet behind the third row in the standard-wheelbase model and 42.6 cubic feet in the 2026 Jeep® Grand Wagoneer L. Capacity expands to 70.8 cubic feet behind the second row and 116.7 cubic feet behind the first row. Total passenger and cargo volume reaches 210.3 cubic feet in the standard model and 225.1 cubic feet in the long-wheelbase version.
Wheels, Tires, and Towing Capability
The 2026 Jeep® Grand Wagoneer offers several wheel and tire combinations associated with specific trims and appearance packages. Aluminum wheel sizes range from 18 inches to 22 inches and include a variety of finishes and spoke designs. Tire selections include all-season and all-terrain options supplied by Bridgestone, Nexen, Pirelli, and Falken. These combinations allow different models and packages to use equipment suited to their intended applications. Wheel and tire specifications vary depending on trim level and optional packages.
Maximum Trailer Capacity
Towing capability depends on wheelbase, drivetrain configuration, and axle ratio selection. Properly equipped four-wheel-drive models with the optional 3.92 axle ratio achieve a maximum trailer weight rating of 10,000 pounds for the standard-wheelbase model and 9,860 pounds for the 2026 Jeep® Grand Wagoneer L. Vehicles equipped with the standard 3.55 axle ratio provide lower maximum ratings, and two-wheel-drive configurations also vary according to wheelbase. Payload ratings are listed at 1,300 pounds for the configurations shown. These figures demonstrate the importance of selecting drivetrain components that match specific towing requirements.
