2026 Jeep® Cherokee in Margate, FL

The 2026 Jeep® Cherokee is engineered as a four-door sport utility vehicle with a transverse front-engine layout and standard 4x4 capability. It is built on the STLA-Large unibody platform, which integrates structural rigidity with weight management and packaging efficiency. The vehicle is classified as a multipurpose vehicle and is assembled at the Toluca Assembly Plant in Mexico. The configuration supports a balance between daily drivability, cargo flexibility, and controlled traction across different road conditions. The 2026 Jeep® Cherokee maintains a curb weight of 4,295 pounds and a gross vehicle weight rating of 5,350 pounds, supporting passenger and cargo capacity within defined limits.

Turbocharged Hybrid Powertrain Configuration

The 2026 Jeep® Cherokee uses a 1.6-liter inline four-cylinder turbocharged engine combined with a hybrid electric system. The engine features an aluminum block and aluminum cylinder heads, contributing to reduced mass and improved thermal management. Bore and stroke dimensions are 3.03 inches by 3.378 inches, and the compression ratio is set at 11.3:1. The engine operates with a dual overhead camshaft configuration and includes variable valve timing for both intake and exhaust valves.

Fuel delivery is managed through central direct injection, and the system is designed to operate on regular unleaded fuel with an 87-octane rating. The engine produces 177 horsepower at 5,500 rpm and 221 pound-feet of torque within a range of 2,000 to 3,500 rpm. Maximum engine speed is electronically limited to 6,500 rpm. The hybrid system increases total powertrain output to 210 horsepower and 230 pound-feet of torque. The system includes engine start-stop functionality and is compliant with SULEV 30 emissions standards.

High-Voltage Battery and Regenerative Charging

The hybrid system is supported by a 400-volt battery pack with a capacity of 1.08 kilowatt-hours and a rating of 4.1 ampere-hours. The battery uses NCM-Graphite chemistry and is designed for integration within the hybrid system rather than external charging. Energy recovery is achieved through brake regeneration, which captures kinetic energy during deceleration and converts it into stored electrical energy.

This configuration allows the 2026 Jeep® Cherokee to supplement engine output with electric assistance during acceleration and maintain efficiency during low-speed operation. The battery system operates continuously as part of the hybrid architecture without requiring driver interaction for charging.

Electronically Controlled CVT and Power Distribution

The 2026 Jeep® Cherokee uses an electronically controlled continuously variable transmission designed for hybrid operation. The transmission is configured with a power-split system that integrates both internal combustion and electric motor inputs. The layout is transverse, aligning with the vehicle’s front-engine architecture.

The transmission operates without fixed gear steps and manages torque delivery through a continuously variable ratio system. The final drive ratio is 4.518. This configuration supports consistent acceleration and optimized engine operation across varying speeds. The integration of the hybrid system with the transmission allows for coordinated power delivery and efficient load management.

Jeep® Active Drive I Four-Wheel Drive System

The 2026 Jeep® Cherokee includes the Jeep® Active Drive I system as standard equipment. This system features a fully disconnecting 4x2 mode and automatic engagement of 4x4 when required. Under normal conditions, the vehicle can operate in front-wheel drive to support efficiency. When traction demands increase, the system transfers torque to the rear axle.

The system can distribute torque evenly between the front and rear axles in a 50:50 configuration. It can also maintain a front-biased distribution when rear traction is not required. The transfer case is a single-speed unit with automatic engagement. Both front and rear axles use open differentials, which are managed by traction control systems to maintain stability.

Selec-Terrain® Drive Mode Integration

The 2026 Jeep® Cherokee includes Selec-Terrain® traction management with four selectable modes. Auto mode is designed for general driving conditions and adjusts vehicle parameters automatically. Sport mode modifies throttle response and transmission behavior for increased responsiveness. Snow mode is calibrated to reduce wheel slip on low-friction surfaces. Sand and Mud mode allows increased wheel spin and adjusted torque distribution for loose terrain.

These modes operate in coordination with the 4x4 system, traction control, and stability systems. The integration allows the vehicle to adjust performance characteristics without requiring manual mechanical intervention.

Suspension Geometry and Steering Mechanics

The vehicle uses a front suspension with a MacPherson® strut configuration and a rear suspension with an integral link design. This setup supports a balance between ride stability and handling precision. The suspension geometry is designed to maintain consistent tire contact with the road surface under varying loads.

Steering is managed by an electric power-assisted rack-and-pinion system. The overall steering ratio is 15.15, and the system requires 2.57 turns from lock to lock. The curb-to-curb turning diameter is 40.3 feet. These measurements support maneuverability in urban environments and controlled steering input during highway operation.

Brake System Engineering and Control Systems

The braking system consists of four-wheel hydraulic disc brakes with anti-lock braking functionality. The front brakes use vented discs measuring 13.0 inches in diameter and 1.1 inches in thickness, paired with dual-piston floating calipers. The rear brakes use solid discs measuring 12.6 inches in diameter and 0.47 inches in thickness, paired with single-piston floating calipers.

The system includes an electronic parking brake integrated into the rear calipers. Electronic Stability Control is standard and works in conjunction with all-speed traction control. These systems monitor wheel speed, steering input, and vehicle motion to maintain stability during braking and acceleration.

Dimensional Structure and Exterior Measurements

The 2026 Jeep® Cherokee has a wheelbase of 113.0 inches, which contributes to cabin space and ride stability. The overall length is 188.1 inches, and the overall width at the mirrors is 83.6 inches. The body width measures 74.7 inches, and the overall height is 67.5 inches. The front track is 64.2 inches, and the rear track is 64.3 inches.

Ground clearance is measured at 8.0 inches. The approach angle is 19.6 degrees, the breakover angle is 18.8 degrees, and the departure angle is 29.4 degrees. These measurements define the vehicle’s ability to navigate uneven surfaces and moderate inclines. The drag coefficient is 0.335, and the frontal area is 29.1 square feet, supporting aerodynamic efficiency.

Interior Dimensions and Cargo Capacity

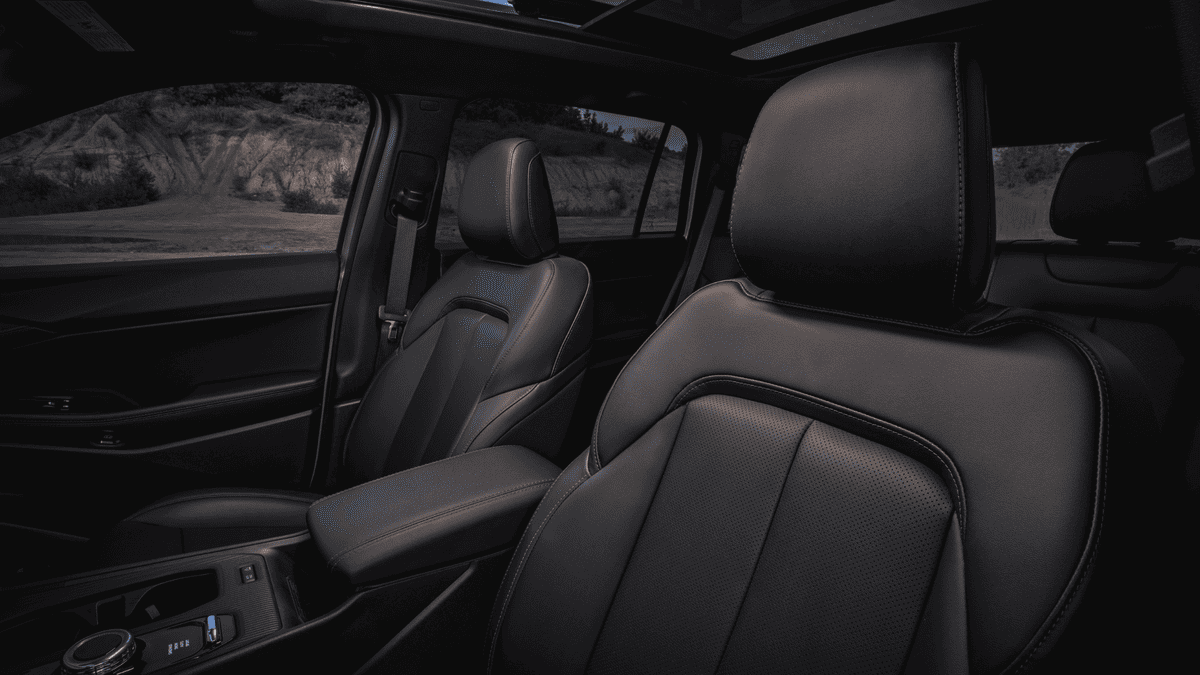

The 2026 Jeep® Cherokee provides seating for five occupants with a two-row configuration. Total passenger volume is 107.361 cubic feet. Front seat headroom measures 40.3 inches without the panoramic sunroof and 38.0 inches with it. Front legroom is 41.3 inches, shoulder room is 57.7 inches, and hip room is 55.4 inches.

Rear seat headroom measures 40.2 inches without the panoramic sunroof and 38.1 inches with it. Rear legroom is 38.5 inches, shoulder room is 57.6 inches, and hip room is 55.1 inches. Cargo volume behind the second row is 33.622 cubic feet. With the rear seats folded, cargo volume expands to 68.335 cubic feet behind the first row.

Cargo access dimensions include a liftover height of 31.2 inches, a maximum cargo width of 45.2 inches, and a maximum cargo height of 28.1 inches. The distance between the wheelhouse interior trim is 43.4 inches. These measurements support the loading and transport of various cargo types.

Towing Capacity and Load Management

The 2026 Jeep® Cherokee has a towing capacity of 3,500 pounds. This rating supports the transport of light trailers and equipment within specified limits. The payload capacity is 850 pounds, which includes passengers and cargo. Weight distribution is approximately 58.6 percent front and 41.4 percent rear, supporting balanced handling characteristics.

The fuel tank has a capacity of 13.7 gallons. This capacity, combined with the hybrid system, contributes to the vehicle’s overall driving range and efficiency.

Wheel and Tire Configurations

The 2026 Jeep® Cherokee is equipped with multiple wheel and tire configurations depending on trim level. Standard 2026 Jeep® Cherokee 4x4 models use 17x7-inch satin carbon cast aluminum wheels with 225/65R17 all-season tires. Limited models use 18x7-inch painted diamond-cut aluminum wheels with 225/60R18 all-season tires. Overland models use 20x8-inch painted diamond-cut aluminum wheels with 235/50R20XL all-season tires.

Schedule a Test Ride at Arrigo Chrysler Dodge Jeep Ram

We invite you to explore the 2026 Jeep® Cherokee in detail at Arrigo Chrysler Dodge Jeep® Ram in Margate, FL. Our team can guide you through the hybrid powertrain, 4x4 system, and technical specifications in a structured and informative manner. Scheduling a test drive allows you to evaluate the 210-horsepower combined output, observe the function of the electronically controlled transmission, and assess interior space and cargo capacity. You can also review the Selec-Terrain® system and braking performance under controlled conditions. Contact our dealership to arrange a test drive and examine how the 2026 Jeep® Cherokee’s engineering and specifications align with your driving requirements.
